PowerPact® Industry-Leading Performance and Protection
The PowerPact ® Advantage
- Proven Performance: Industry-leading circuit breaker innovation and protection for heavy-duty commercial and industrial applications.
- Flexible: Full range of molded case circuit breakers from 15A to 2500A, delivering the ratings, configurations and operators for your unique application.
- Simple: Common catalog numbers, standardized ratings and a full range of field-installable accessories make product selection, installation and maintenance easier than ever.
- Global Product: Rated for both domestic and international standards with worldwide service and support.
I-Line II busways are constructed in three-pole and four-pole full neutral configurations for system voltages to 600 volts and are rated to allow 100% of the current to flow continuously.

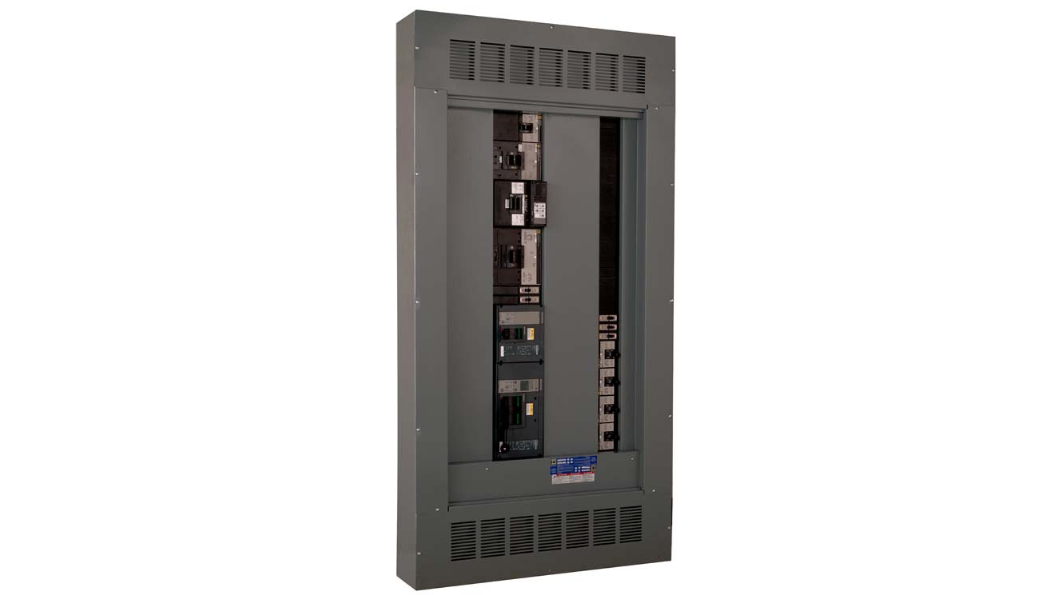

Square D I-Line™ Circuit Breaker Panelboards Catalog
Ideal for service entrance equipment or downstream distribution panels in the electrical system of a large commercial or industrial facility. The I-Line™ power distribution panelboard features Schneider Electric's unique circuit breaker engagement system and is used to feed NQ and NF lighting and appliance panelboards. I-Line panelboards are capable of feeding large motor loads and are utilized in most every market segment.
- Line circuit breaker panelboards are available as 400–3000 A main lugs only and 100–1200 A main circuit breakers.
- 15–1200 A frame circuit breakers require only a screwdriver and are
- firmly attached to the bus stack and mechanically attached to the interior assembly.
- The connectors are an integral part of the I-Line circuit breaker eliminating the assembly of connectors to the bus bar.
- Pre-assembled hardware means reduced installation time.
- The unique line side connection requires no routine maintenance.
- All circuit breaker connections are “blow-on” type. Under high-level short circuit conditions, the magnetic forces developed tend to draw the connector jaws together, gripping the I-Line bus bar more firmly.

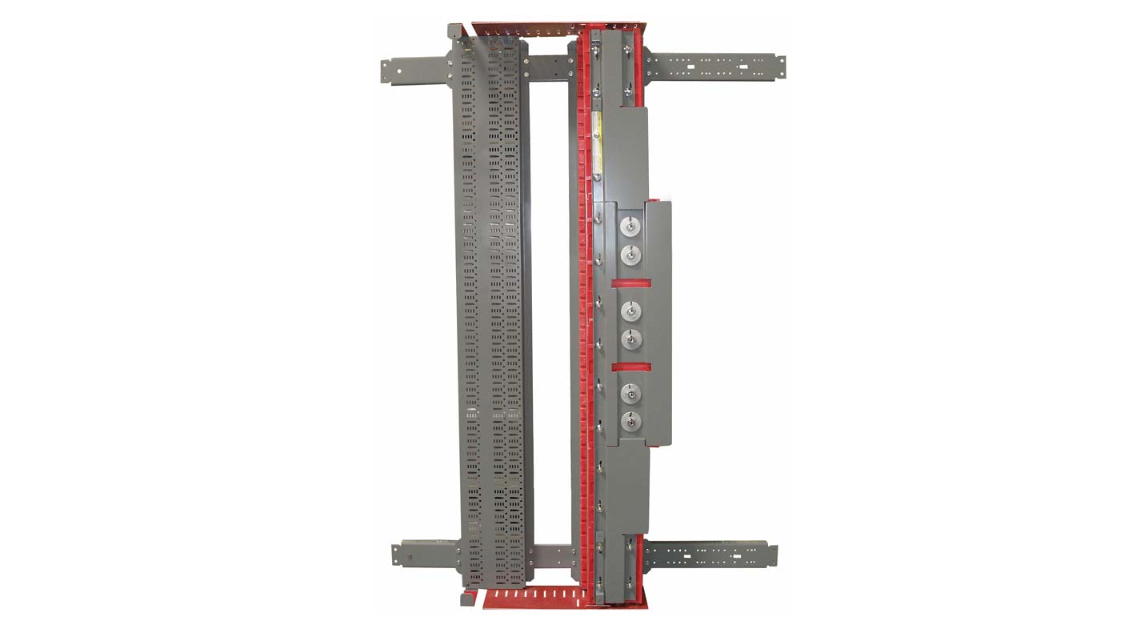

Square D I-Line™ OEM Mounting Requirements for Single and Double Row QED I-Line™ Panels
This bulletin provides instructions for original equipment manufacturer (OEM) mounting of a single or double row Square D™ brand QED I-Line™ panel in an enclosure. It is not intended for field installation in existing facilities. Each of the catalog numbers listed in this instruction bulletin has an Underwriters Laboratories (UL) listed component mark on it. The OEM I-Line interiors manufactured by Schneider Electric are covered in the Square D UL file E186410 Volume 1, Section 2. The mounting requirements for single and double row QED I-Line panels in this bulletin represent minimum Schneider Electric standards. Schneider Electric recommends that tests be conducted per UL 891 for any variation from these standards. All bus bars are 0.25-inch (6 mm) thick copper. The maximum short-circuit current rating in rms symmetrical amperes is 200,000 A/240 or 480 Vac, or 100,000 A/600 Vac. The actual short-circuit current rating is limited to the lowest short-circuit current rating of any device installed on the panel or listed series connected devices. Do not mount lugs directly to the panel center feed connectors unless the connectors are braced and supported per UL 891. All OEM connectors, through bus bracing, and supports must comply with UL 891 short-circuit requirements.
